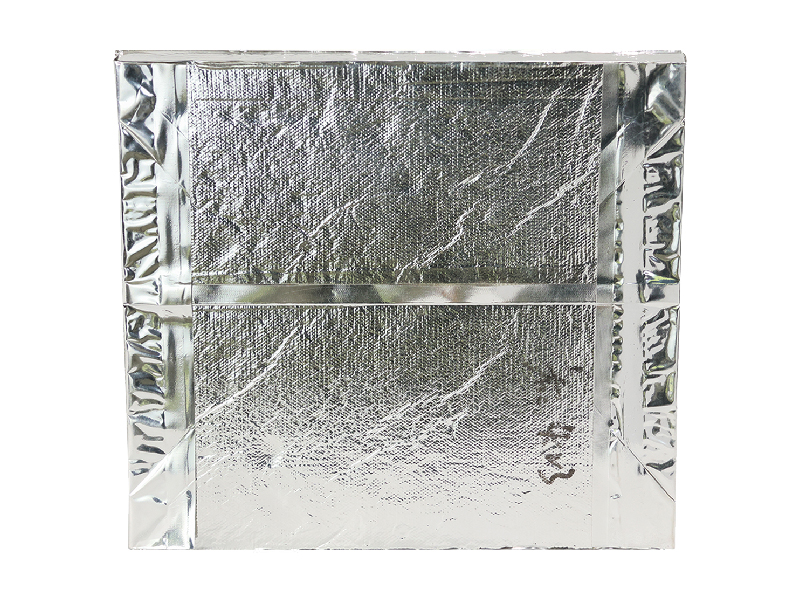

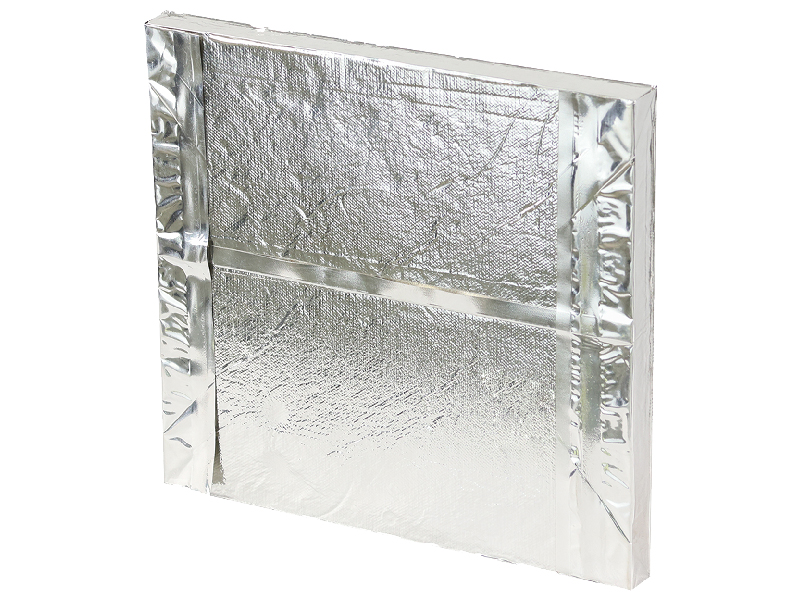

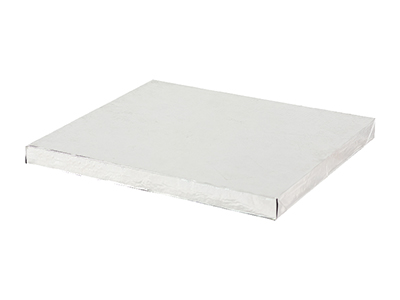

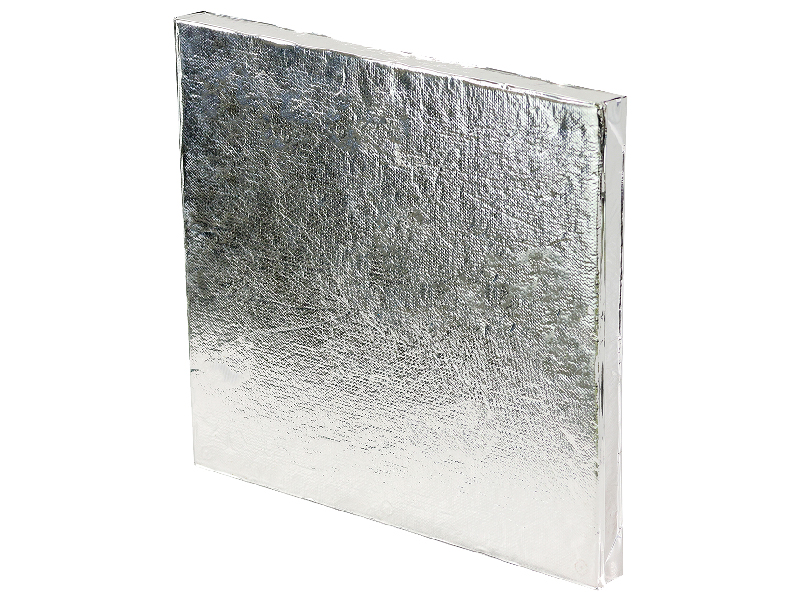

Vacuum insulation panel based on fumed silica core material consists of two major parts: fumed silica core material and high barrier laminates. As a special composite made of core materials and protective layers, it is integrated with the superiority of vacuum insulation and micro-pore heat insulation, effectively stopping convective heat transfer to perfect thermal insulation. With a thermal conductivity of lower than 0.0045w/m.k and minimum thickness of 4mm thicknesses, vacuum insulation panel based on fumed silica core material uses fumed silica core materials with a higher expected lifetime and the environmental protection materials that can be recycled and reused.
| Core material | Fumed silica | Maximum size (mm) | 700×1200 |
| Film | High performance barrier film | Thickness range (mm) | 4 to 50 |
| Color | Silver | Density (kg/m³) | 180 to 200 |
| Temperature range (℃) | -80 to 85 | Length and width tolerance (mm) | ±3 |
| Structure | Rectangular | Thickness tolerance (mm) | ±2 |
| Standard size | Customized size | Thermal conductivity (W/m·K) | < 0.005 |
| Approval | ROHS, REACH |
We're just a message away! Contact us for any questions or additional information. We look forward to hearing from you.
We customize vacuum insulation panels to meet your specific requirements. Please email us or give us a call to find more information.

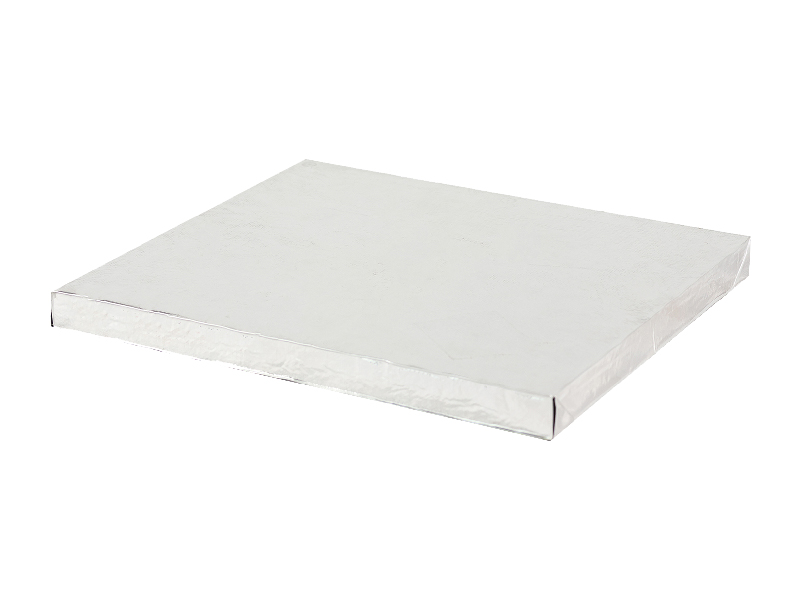

Although vacuum insulation panel has a good insulating performance and barrier property, we further have developed robust, durable polyurethane vacuum insulation panel (PU-VIP) for collision avoidance upgrading from vacuum insulation panel based on fiberglass core material combined with polyurethane foam (PU).

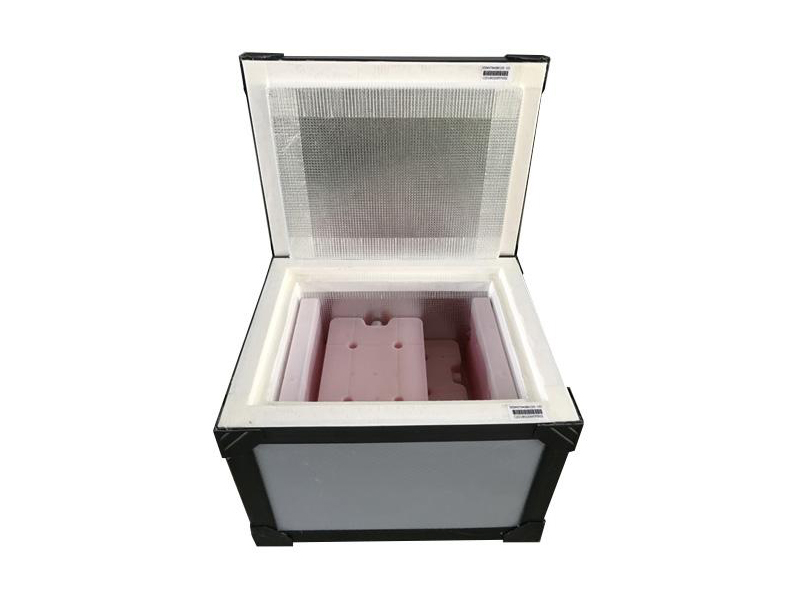

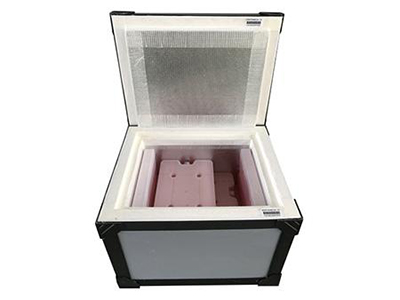

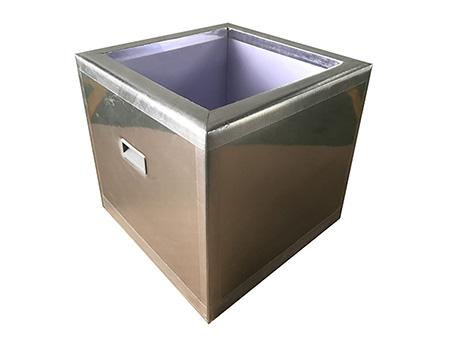

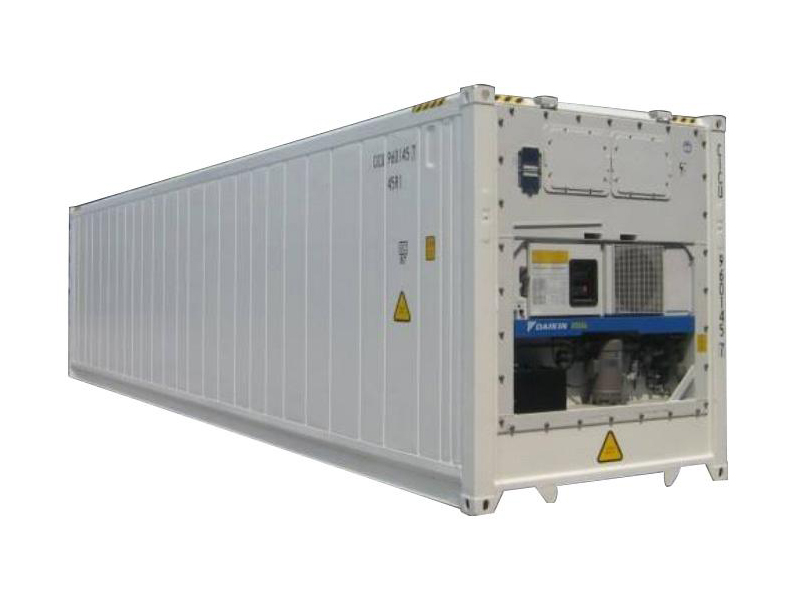

Our integrated vacuum insulated box can target customers of varying needs in the cold chain transportation of medicine, fresh health product, food, etc.
Designed to maximize the benefits of vacuum insulation by combining advanced materials and cutting-edge manufacturing techniques.
Fujian Saitech New Material Co., Ltd. is an industry-leading quality provider of systematic solutions in the field of vacuum insulation and energy saving, and a national high-tech enterprise, which started in 2007 and was listed on the A-share board of the Science and Technology Innovation Board of the Stock Exchange of China in February 2020 (stock abbreviation: Saitech New Material, stock code: 688398).

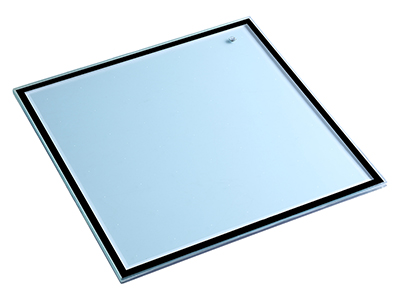

The company is headquartered in Longyan, Fujian, with five subsidiaries, including Firm, VIG, Sait Cold Chain, Sait Building Materials and Anhui Sait. The main business covers the research, development, production and sales of vacuum insulation panels (VIP) and ultra-fine glass wool core material, vacuum insulation glass (VIG), barrier film, adsorbent, vacuum encapsulation product performance testing, etc., serving the global refrigerator leader and expanding the cold chain, construction and other diversified applications.
The company has a strong technical research and development strength, master the vacuum insulation plate of the whole link of independent innovation of the core technology, access to a variety of national core patents amounted to 115, is an important industry standard maker, is the vacuum insulation material industrialization promoter.
The company's series of products are sold all over the world, among which, the domestic market share of vacuum insulation panels exceeds 30%; the cumulative global sales volume exceeds 35 million square meters. With intelligent and integrated production capacity, the company will continue to provide systematic insulation and energy-saving solutions for the world and take care of the new green life of human beings!
